Product Description

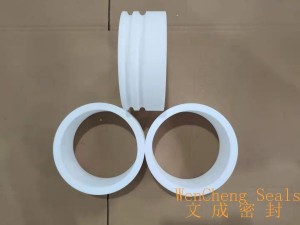

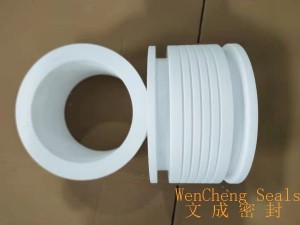

PTFE tubing:
There are three types of PTFE pipes: For a pipe with outside diameter 1-25 mm and thickness of wall 0.1-2.5 mm, we choose polymized PTFE resin and process it by pressing; For a pipe with outside diameter 25-200 mm and thickness of wall 1.5-8 mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25-1200 mm and thickness of wall 5-500 mm, we process it by die pressing.
Application:
Insulated pipe casing for wire, pipe for corrossive fluids,electric insulated parts used in high frequent conditions.
Feature:
1. Anti-flaming
2. Insulation
3. Anti-aging
4. Corrosion resistant
Main indexes
Apparent density 2.10-2.30 g/cm3
Tensile strength ≥18.0 MPa
Crack elongation ≥230%
Temperature range -180~+260℃
